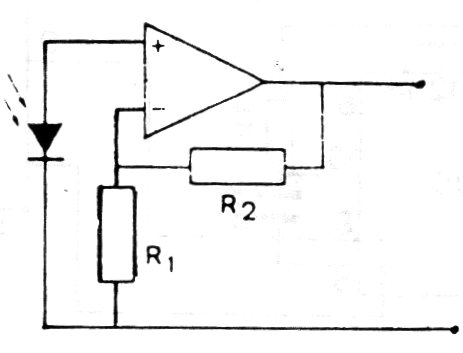

This other photodiode amplifier uses an operational amplifier in the non-inverting mode and in the same way as in the previous circuit, the relation between the resistors determines the gain. The power supply must be symmetrical.
