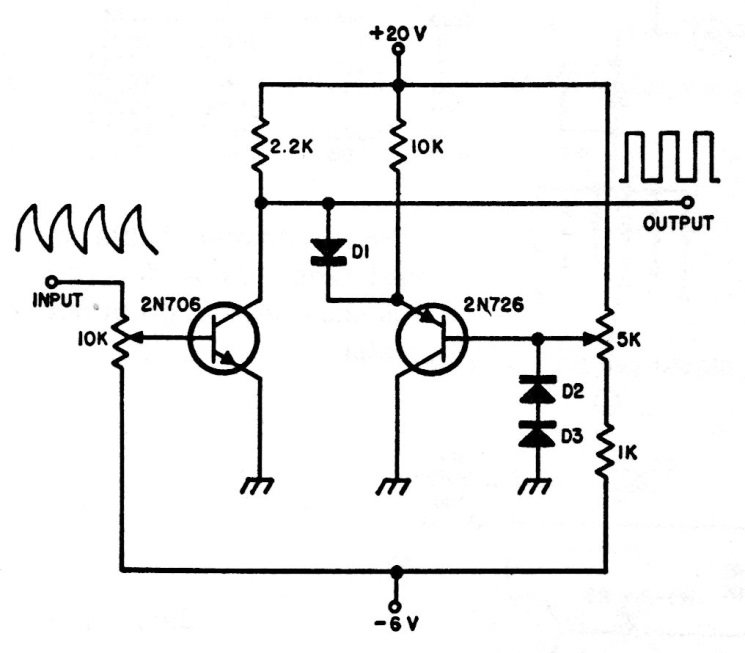

This circuit, found in 1980s documentation, produces a rectangular signal of the same frequency as the input signal. The potentiometers set the operating point and the source must have two voltages.
| Clique na imagem para ampliar |
This circuit, found in 1980s documentation, produces a rectangular signal of the same frequency as the input signal. The potentiometers set the operating point and the source must have two voltages.
