Audio Cable Tester (CB3827E)

Details
Written by: Newton C. Braga

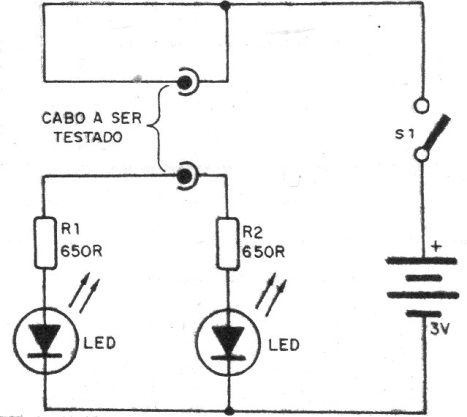

     This simple circuit tests both monophonic and other two-wire audio cables. The circuit is powered by two common batteries.
