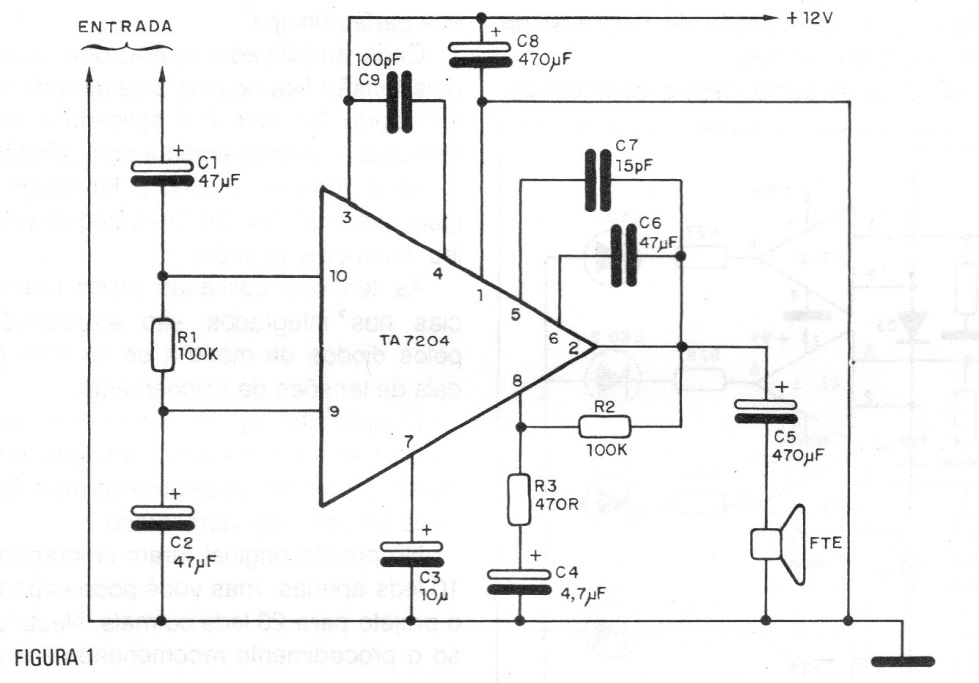

The integrated circuit used in this 1987 project is not very common these days. However, if found it can result in a good amplifier with 12 W power when powered by 12 V. The integrated circuit must be fitted with a heatsink and the power supply must be at least 2 A.
| Clique na imagem para ampliar |
