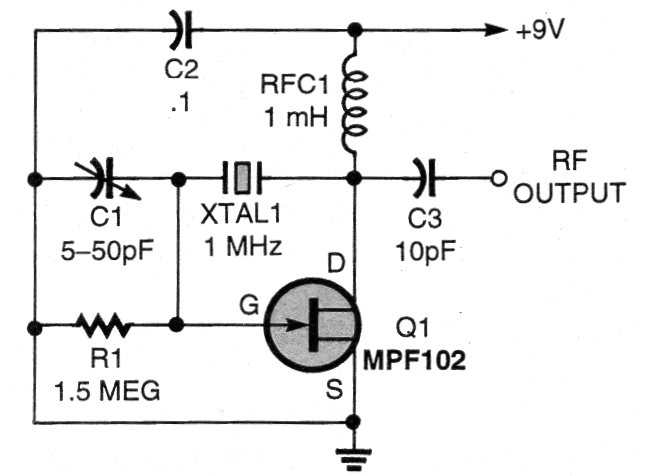

The frequency of this traditional crystal oscillator (XTAL) depends only on the used crystal, which can reach a few tens of megahertz. The transistor admits equivalent as the BF245 and the trimmer adjusts the best oscillation point for the circuit to break easily.
