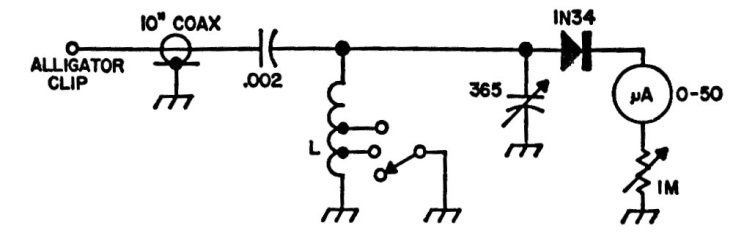

This circuit can be used with transmitters in the 3 to 30 MHz frequency range also functioning as a detector. L is formed by 30 turns of wire 20 with socket in turn 5 and 16. The circuit is of an old documentation for hams.
