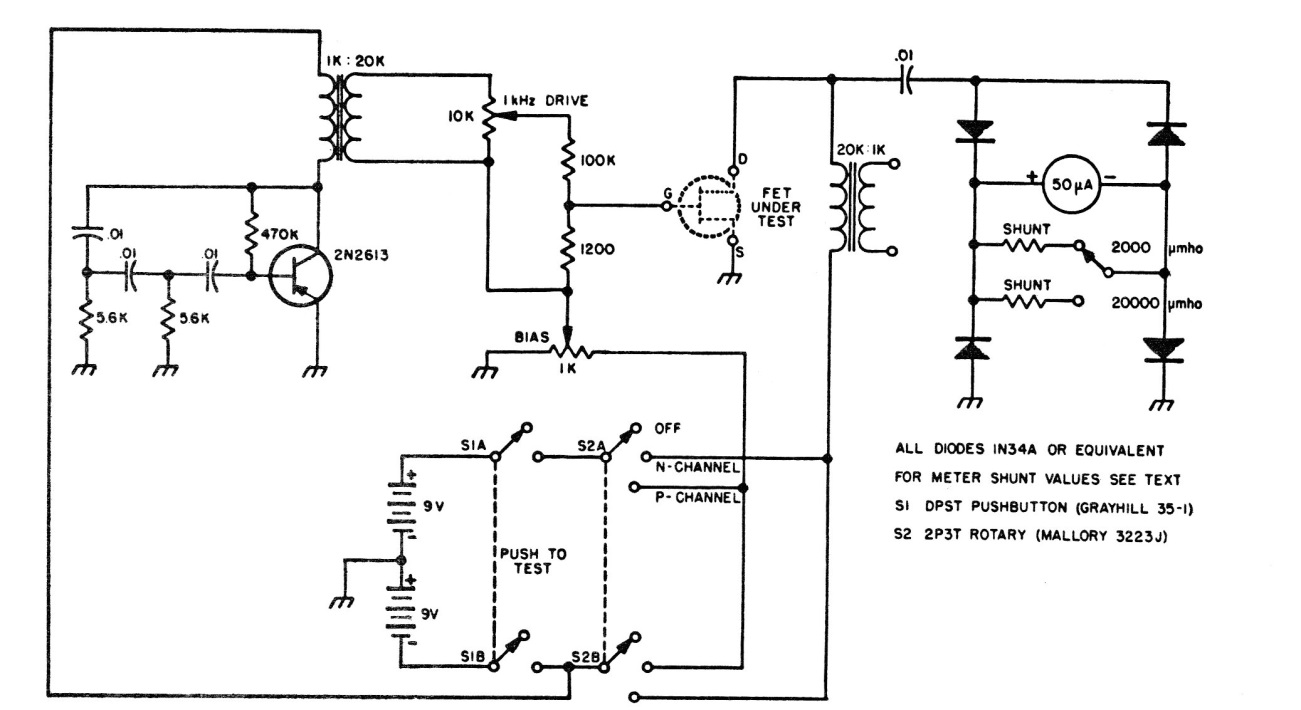

This interesting FET-tester circuit was obtained from an old American documentation. The bipolar transistor can be a 2N2218 or equivalent and the critical component is the small transformer that can be obtained in old transistorized equipment. The circuit is powered by a symmetrical source.
