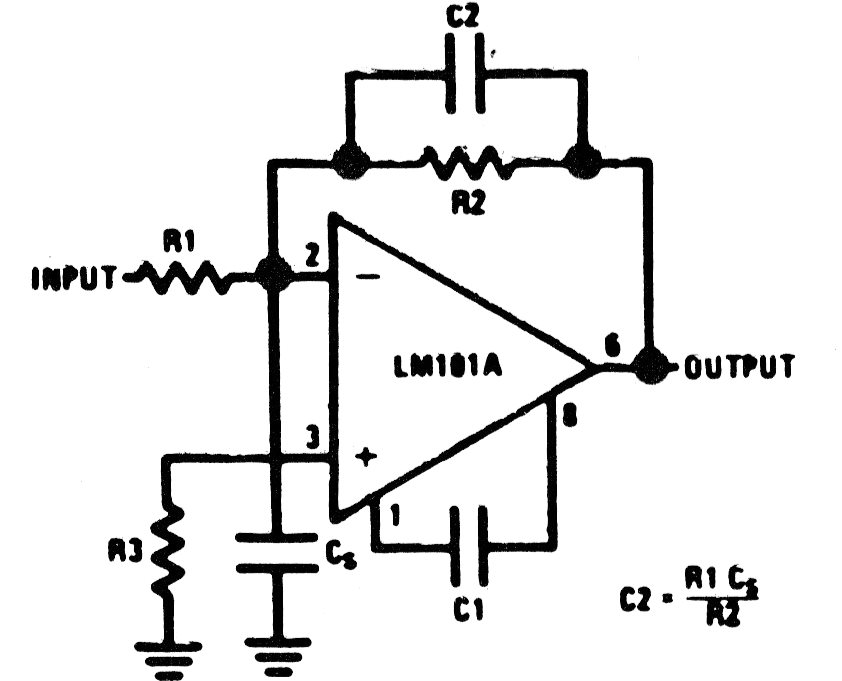

This circuit was obtained in a manual of the used old operational amplifier. However, the same configuration can be adapted to operate with modern operational amplifiers. The power supply must be symmetrical.
| Clique na imagem para ampliar |
This circuit was obtained in a manual of the used old operational amplifier. However, the same configuration can be adapted to operate with modern operational amplifiers. The power supply must be symmetrical.
