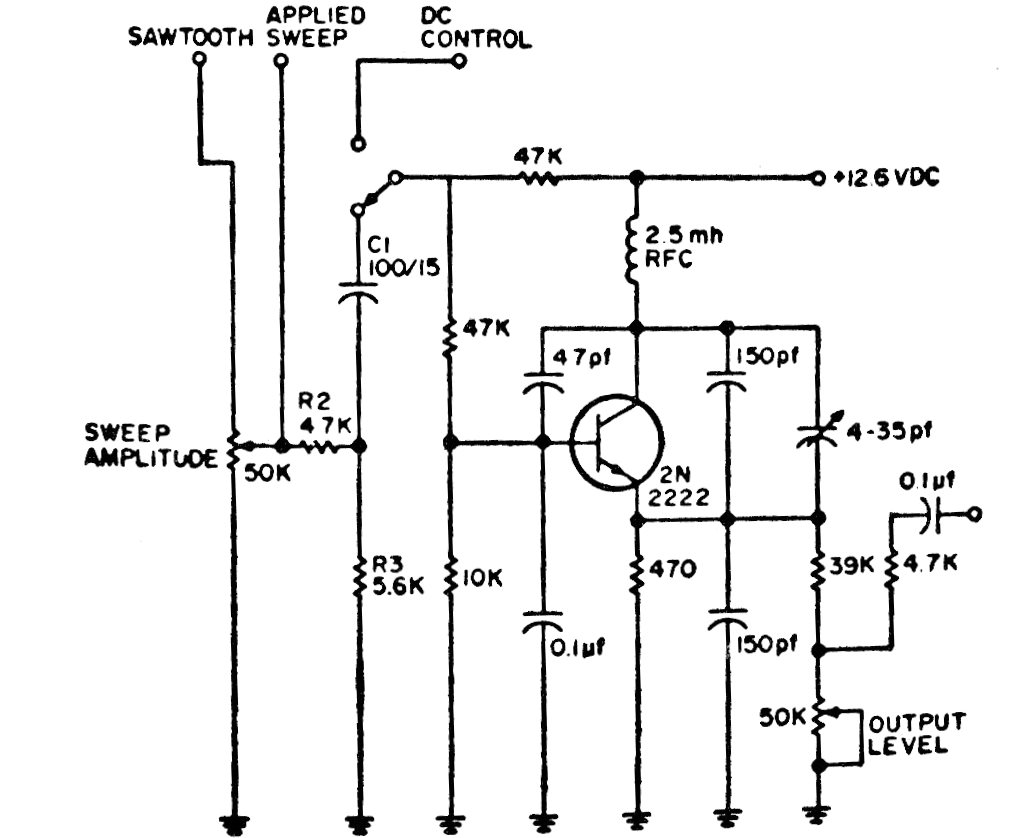

In the figure we have the circuit of a sweep generator obtained in an old publication. The central frequency depends on the coil that can be changed according to the application and according to the transistor used.
