Dimmer (CB3973E)

Details
Written by: Newton C. Braga

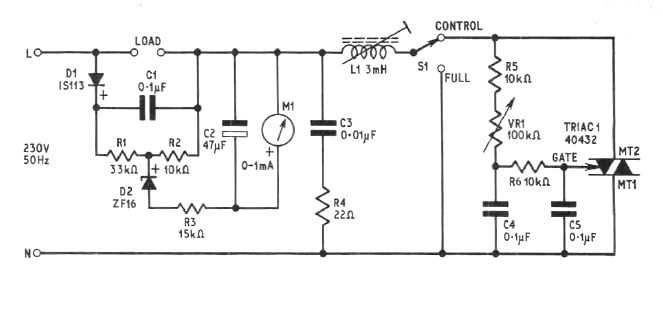

   This brightness control for incandescent lamps or engine speed has been found in a 1970 English publication. TIC series triacs can be used and the diodes can be 1N4007. With changes in C4 the circuit will operate in 110 V.
