Voltage Regulator LM3900 (CB4043E)

Details: Written by: Newton C. Braga

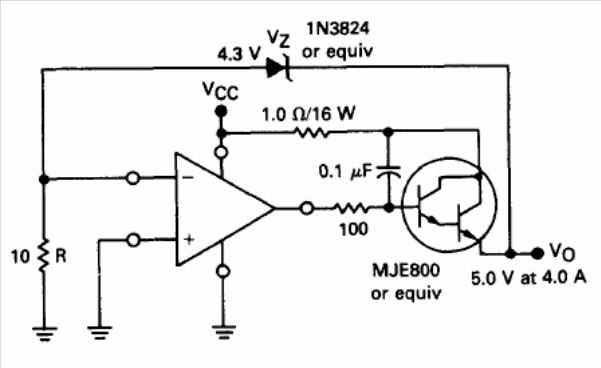

This configuration makes use of an LM3900 transconductance operational amplifier. The transistor can be a Darlington from the TIP series to 5 A or more. The circuit is from the 1990 Motorola Linear Databook.

CB4043E
