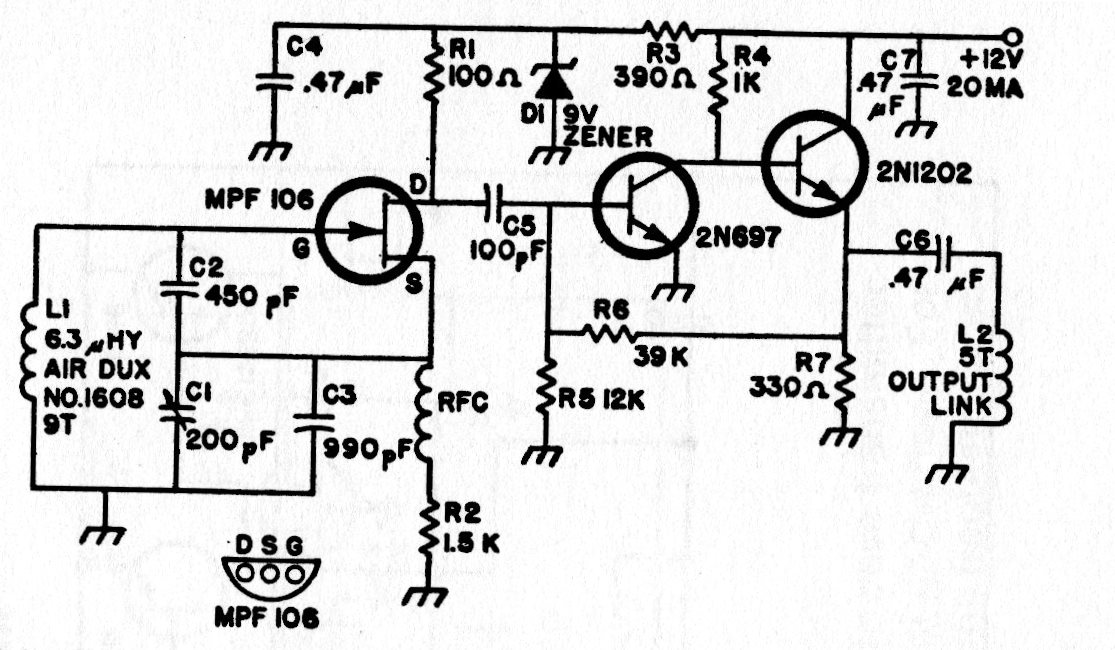

This circuit for the 3.5 MHz band (80 meters) was found in an old radio amateur documentation. The circuit is from the 80's, and current equivalent transistors can be used. Data on the coils are in the diagram itself.
