Remote control feceiver (CB20573E)

Details: Written by: Newton C. Braga

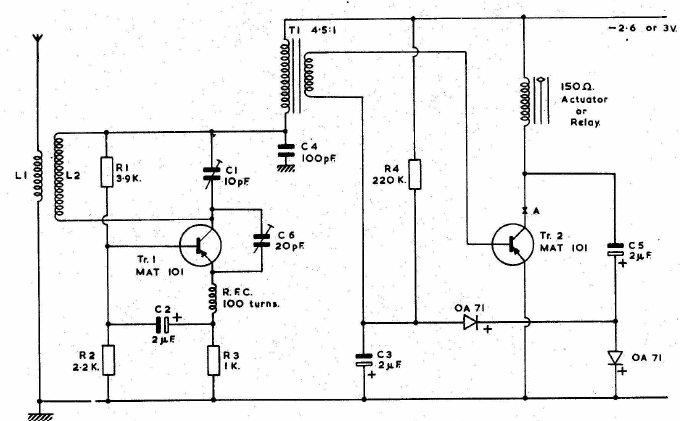

This super regenerative detector circuit was found in an English documentation from 1963. The coil is frequency compliant. The transistors are germanium of the time.
