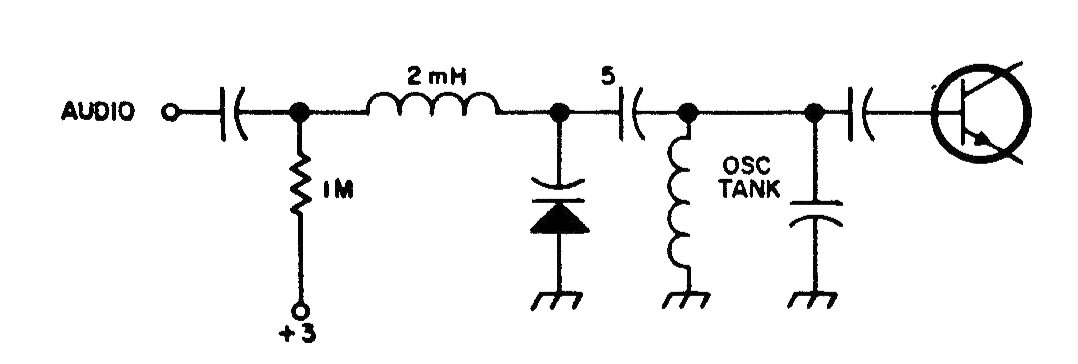

In the figure we show how to use a varicap to modulate a signal in frequency. The circuit can be used in transmitters, with the transistor being the oscillator stage. The circuit is from an old telecommunication documentation.
