Amplitude Modulator (CB4124E)

Details
Written by: Newton C. Braga

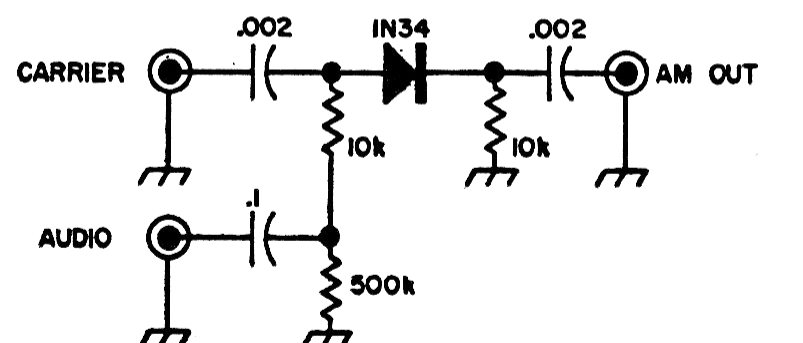

     With this passive circuit it is possible to modulated in amplitude a low intensity RF signal. The circuit is from old American documentation and uses a germanium diode as its main component.
