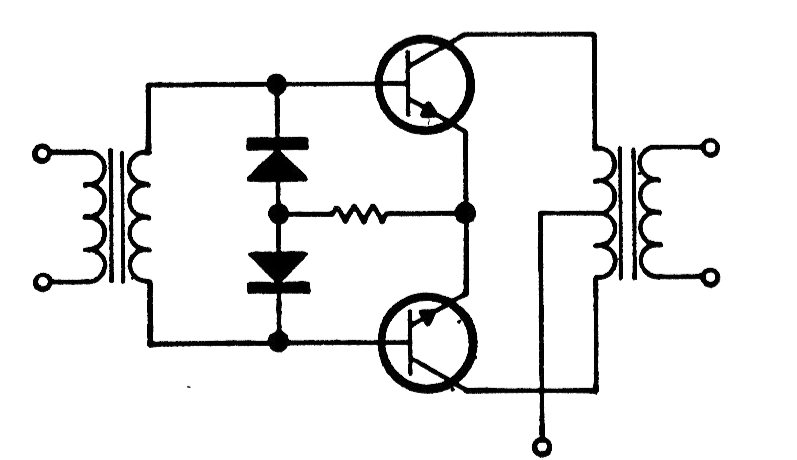

In the figure we show how two diodes can be used to simulate the center tap of a push-pull driver step. The diodes are general purpose and the resistor calculated with the required bias current. The circuit is from an old 80's documentation.
