Simple Dimmer (CB4148E)

Details: Written by: Newton C. Braga

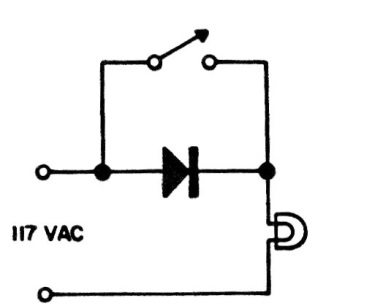

This simple two position dimmer is suitable for low wattage incandescent lamps. The diode can be either 1N4004 or 1N4007 the circuit also operates on 220V/240 V grid with appropriate lamps.
