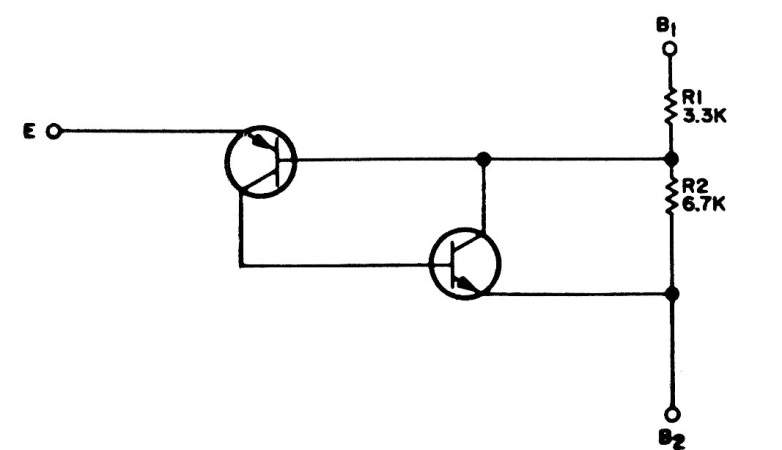

The circuit shown simulates a programmable unijunction transistor (PUT). Transistors may be common general purpose transistors such as BC558 and BC548. The circuit was found in old American documentation, but appears in other articles on this site from other sources.
