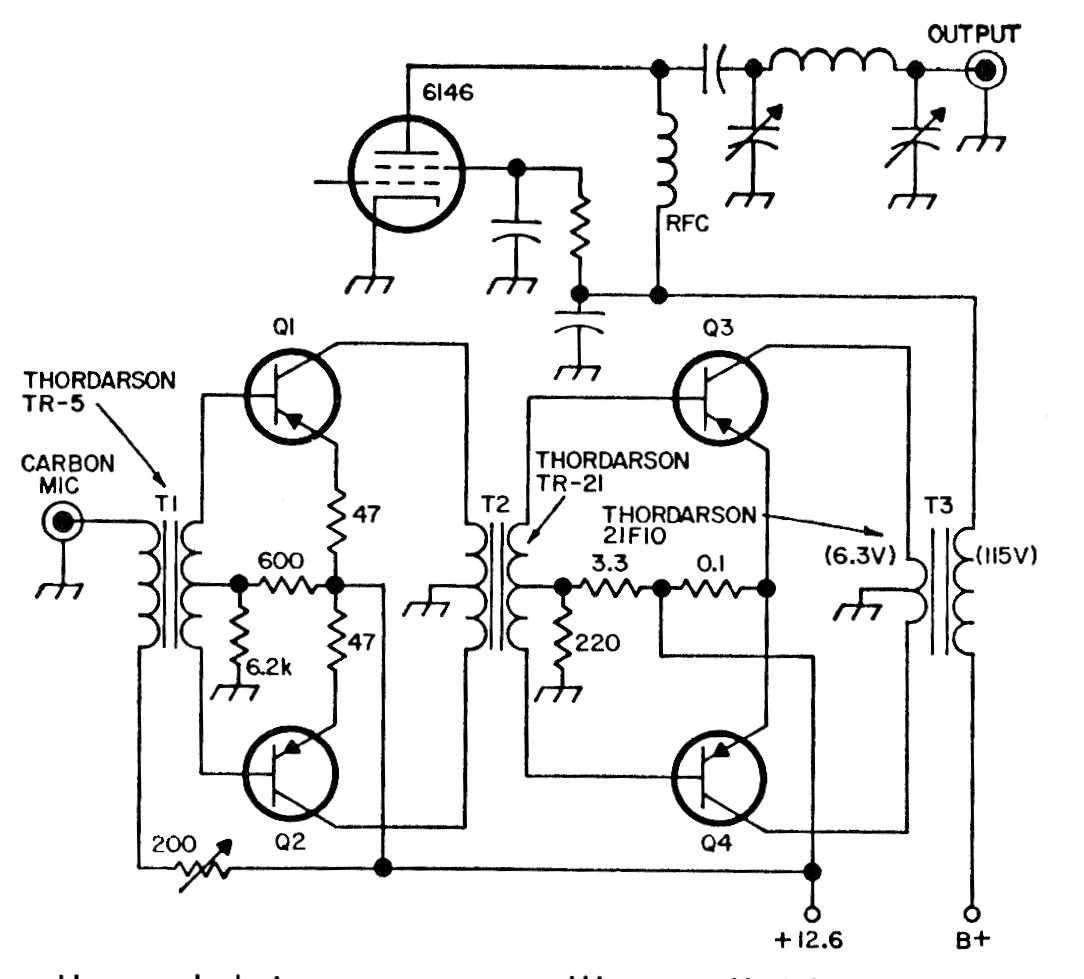

This modulator circuit is nothing more than an audio amplifier that serves to modulate amplitude signals in a valve transmitter. The circuit is from the 80's, being used transistors of the time. Modern equivalents may be used, but transformers are critical components of the assembly.
| Clique na imagem para ampliar |
