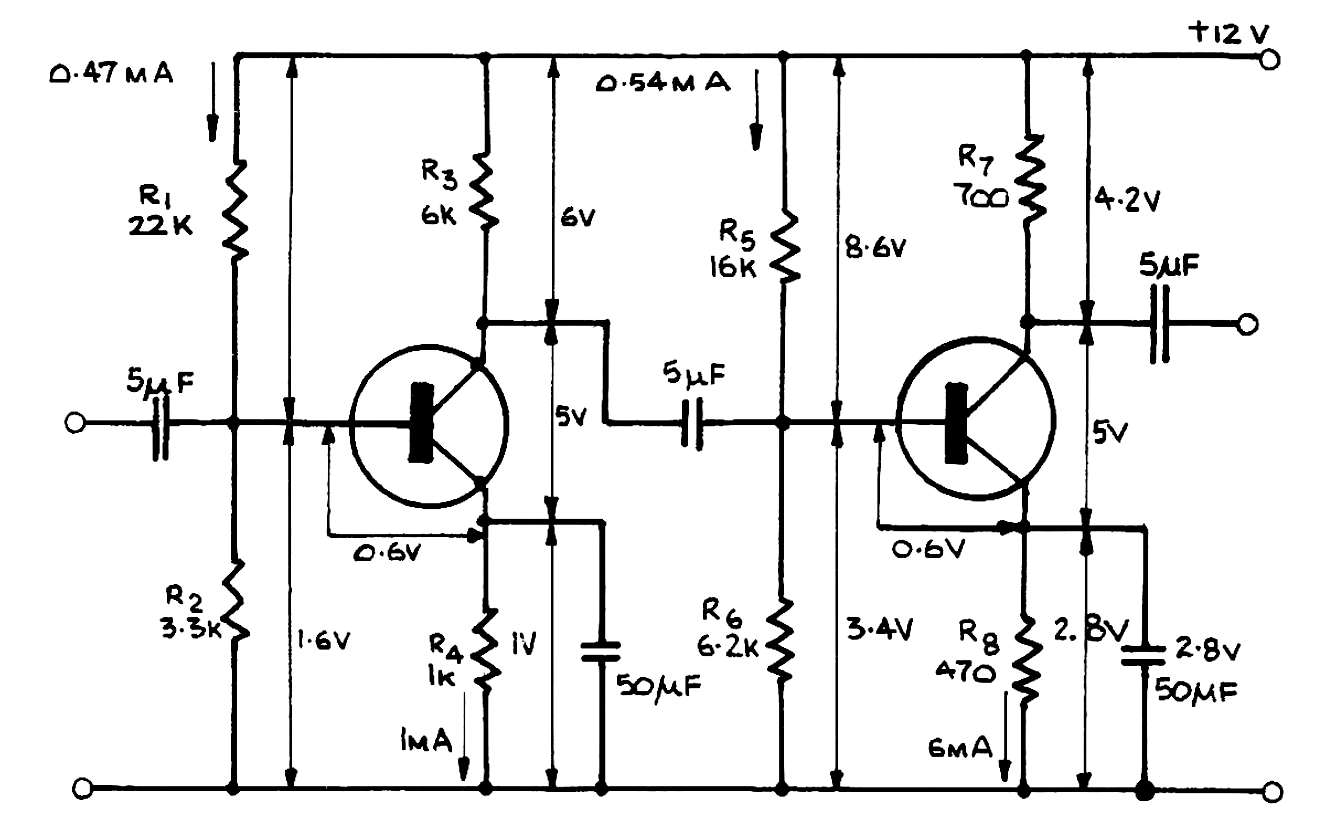

In the figure we have a two-stage amplifier circuit showing the voltages at various points. The transistors are general purpose NPN and the circuit has a voltage gain of approximately 880 times. The circuit is from a book by A. Fanzeres.
| Clique na imagem para ampliar |
