Temperature Bridge (CB4523E)

Details: Written by: Newton C. Braga

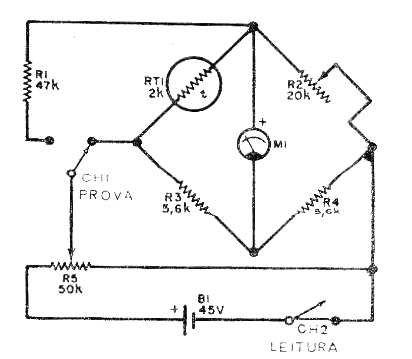

This Wheatstone bridge has a thermistor or NTC sensor, allowing the measurement of temperatures by calibrating the potentiometer scale. Potentiometer R5 compensates for battery wear by resetting the circuit.
