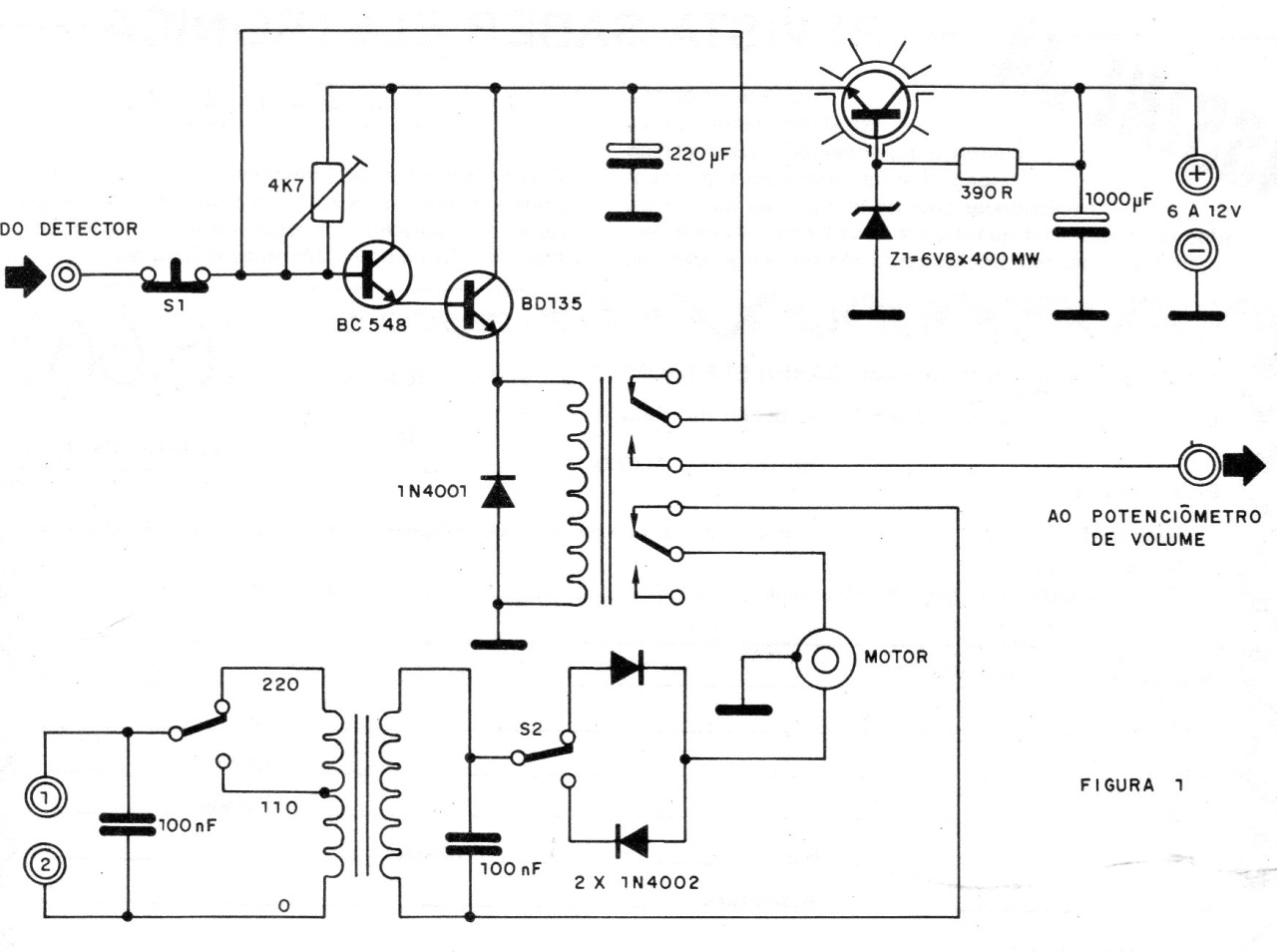

This circuit is from 1986 documentation, being adaptable in radios of that time. The circuit uses the tuned signal to drive a relay so that it stops at the next station found. The relay acts on a motor that must be coupled to the tuning mechanism.
| Clique na imagem para ampliar |
