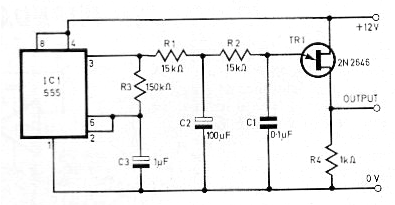

This circuit was obtained from an English magazine from 1976. The signal from the circuit should be applied to a good amplifier. The modulation is given by the 555 which controls a unijunction relaxation oscillator. Resistors R1 and capacitor C2 and C3 can be changed to modify the sound effect.
