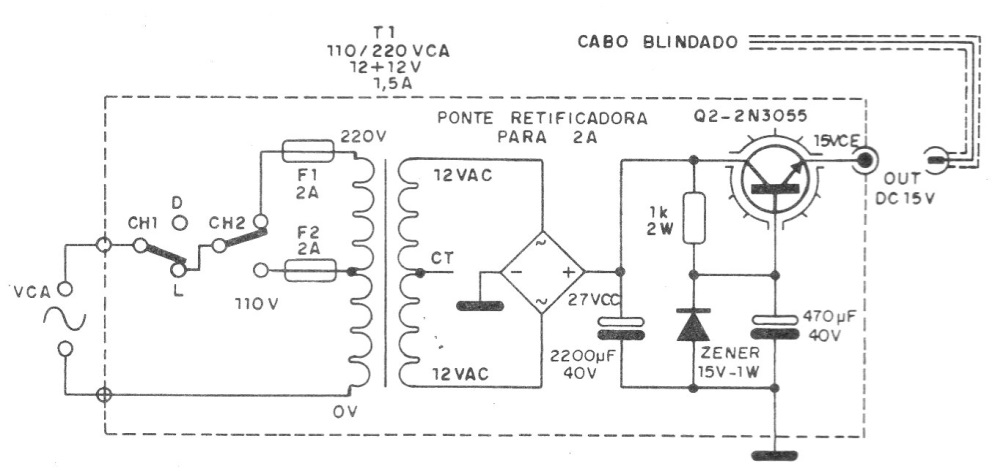

This 1.5 A source for FM transmitters was originally intended for the transmitter described in CB4330E. The voltage regulating transistor must be equipped with a heat sink and the connection to the transmitter must be made by shielded cable. The diode bridge uses 1N4004 diodes or a full 1 or 1.5 A bridge can be used.
