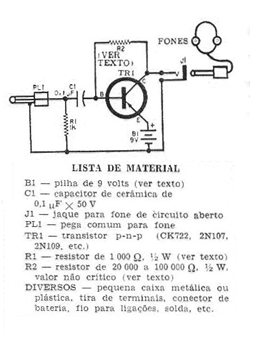

Found in a 1964 magazine, this is a small headphone amplifier from 500 ohms to 10 k ohms (magnetic type). It can be easily mounted using the BC558 transistor instead of the original transistor. Eventually the resistor R2 in the range of 47k to 220k should be changed for better gain with less distortion.
