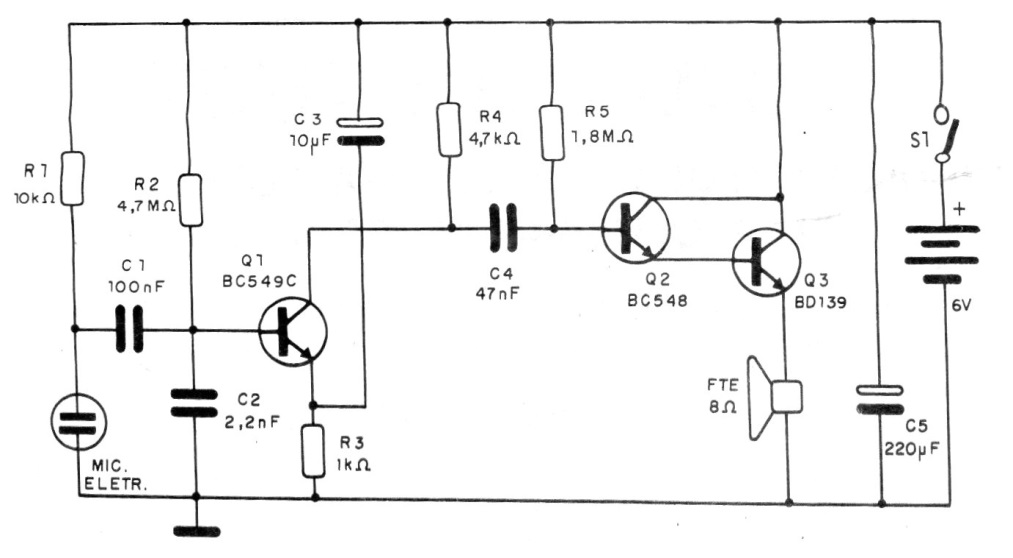

This simple megaphone is from old documentation, but uses still current components. The circuit is powered by 4 large batteries and uses electret microphone. Transistor Q3 should be provided with a heat radiator and S1, preferably should be of the push-button type at which the circuit is activated only at the moment of speaking.
| Clique na imagem para ampliar |
