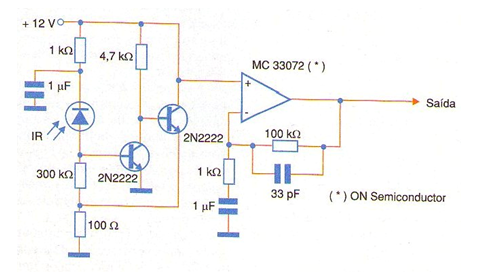

In the figure we have a sensor circuit that makes use of common transistors and a photo diode as sensor. Transistors attached in the trigger configuration provide very fast response to the circuit. The operational amplifier admits equivalent and must be powered by symmetrical source.
