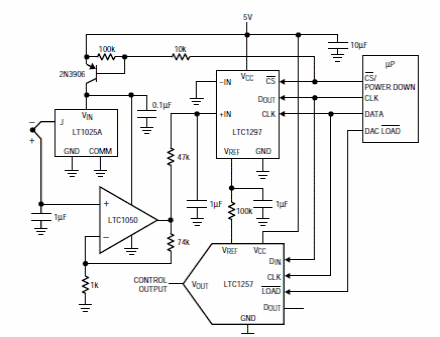

This circuit was obtained from Linear Technology's own component manual of the 1990s. The circuit acts as a shield for microcontrollers acting with a thermocouple. The power comes from a 5 V supply.
