AM Modulator (CB4917E)

Details: Written by: Newton C. Braga

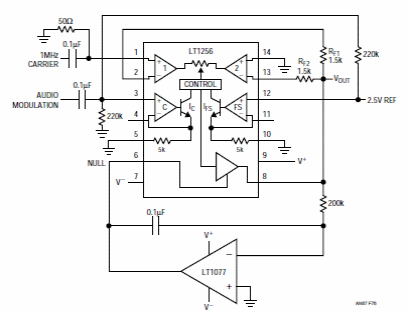

We found this circuit in a Linear Technology component manual. The circuit also has a DC zeroing output. More information the reader can find on the manufacturer's website.
