Transducer bridge amplifier (CB4935E)

Details
Written by: Newton C. Braga

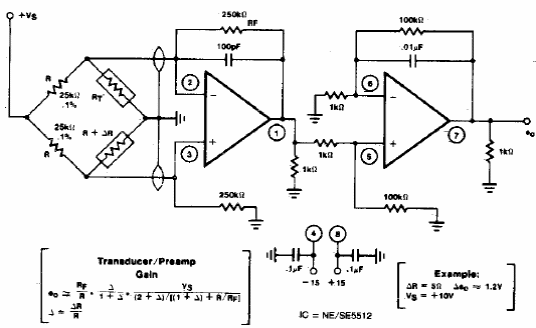

     This circuit was found in a 1980s instrumentation publication and can be applied to virtually any operational amplifier. Formulas for component calculations are given next to the diagram. The power supply must be symmetrical.
