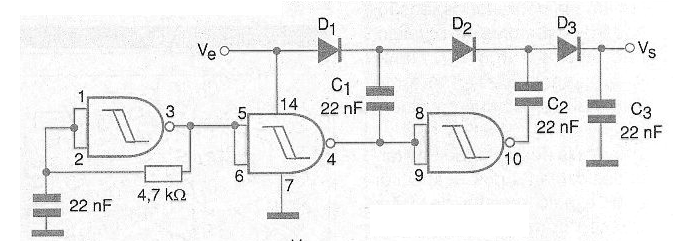

This circuit consists of a solid state doubler that doubles the supply voltage Ve between 5 and 15 V. The current is very low and the 4k7 resistor together with the capacitor on pins 1 and 2 determine the operating frequency. The integrated circuit used is the 4093.
