Recorder Amplifier (T481E)

Details
Written by: Newton C. Braga

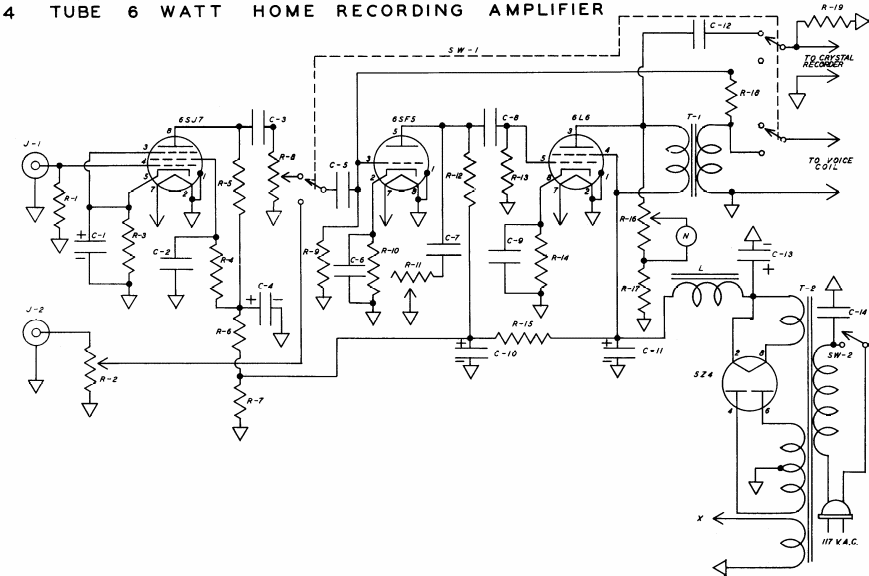

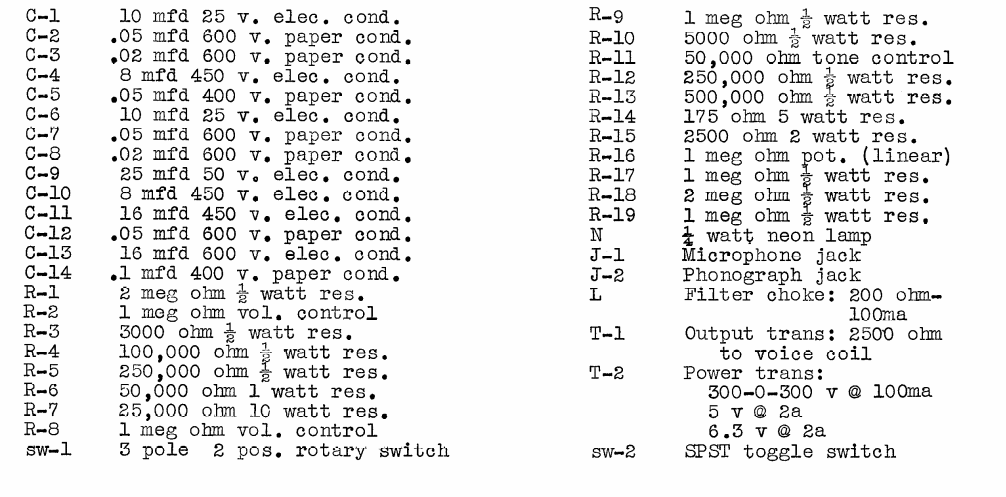

This 6W amplifier with 4 tubes was indicated in an American documentation from 1947 to operate with recorders. The circuit uses a source with a transformer.










| Clique na imagem para ampliar |




| Clique na imagem para ampliar |
