15W 4-Channel Amplifier (T500E)

Details
Written by: Newton C. Braga

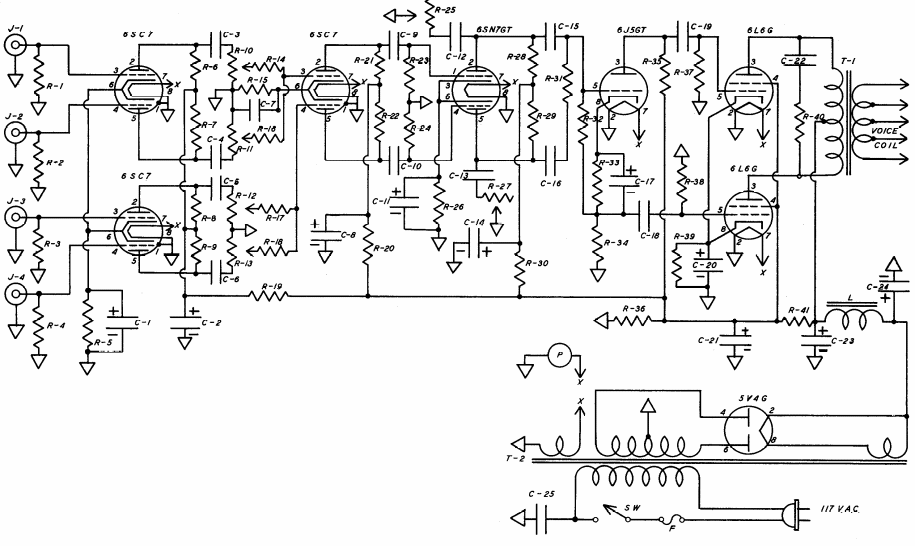

This 4-channel mixer amplifier was found in an American publication from 1947. The circuit uses counterphase output tubes and a transformer power source.








| Clique na imagem para ampliar |




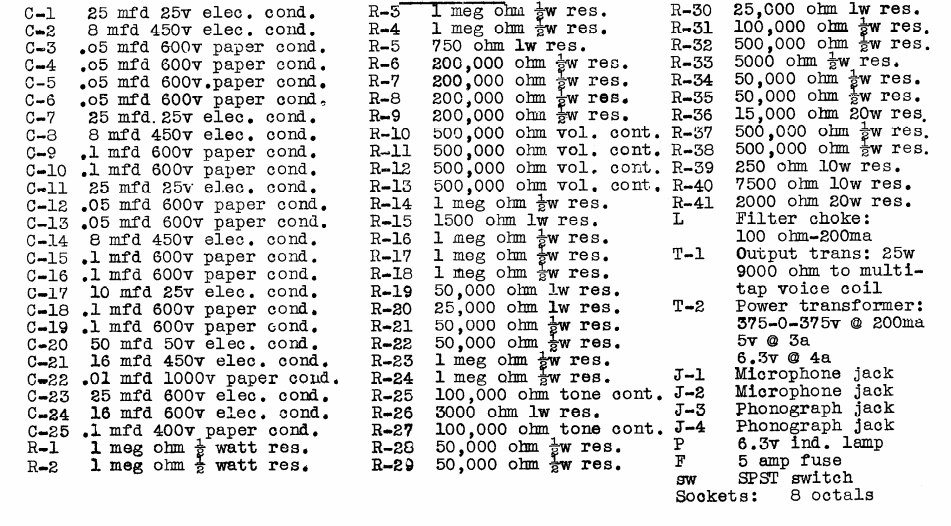

| Clique na imagem para ampliar |
