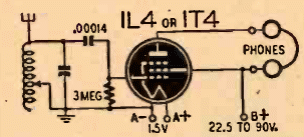

The coil of this medium wave receiver consists of 100 turns of 28 wire in a PVC tube with a slider to select the socket. The circuit of a Radio Craft from December 1947 has high impedance headphone listening and is powered by two batteries.
1-tube Receiver (T1200E)
- Details
- Written by: Newton C. Braga
