Benchtop Audio Generator (T1707E)

Details
Written by: Newton C. Braga

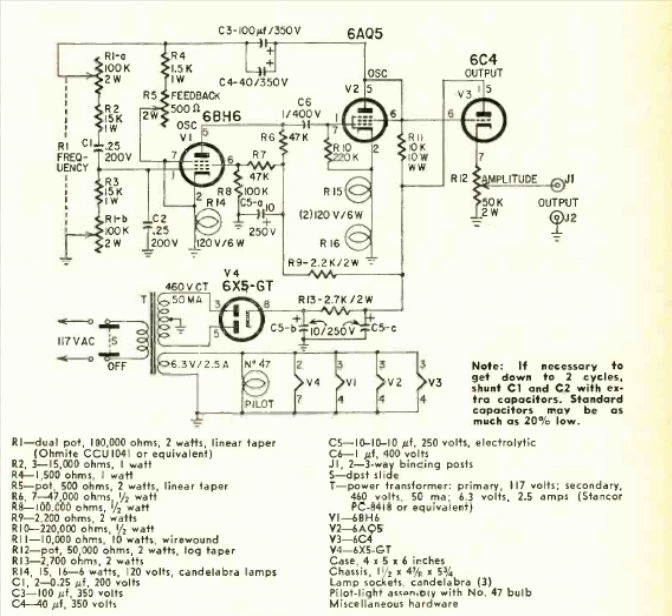

An article in Radio Electronics magazine from November 1958 showed the construction of this tube audio oscillator. Note the use of lamps as a stabilizer to obtain better sinusoidal signals.
