45W Amplifier (T498E)

Details
Written by: Newton C. Braga

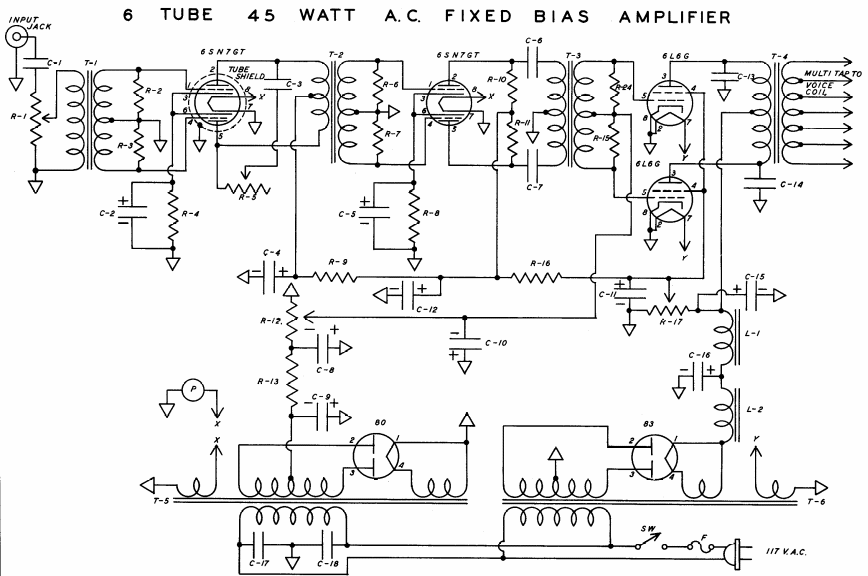

This amplifier with fixed AC bias was found in a 1947 documentation. The circuit uses two transformers in the power supply and two full-wave rectifier tubes.










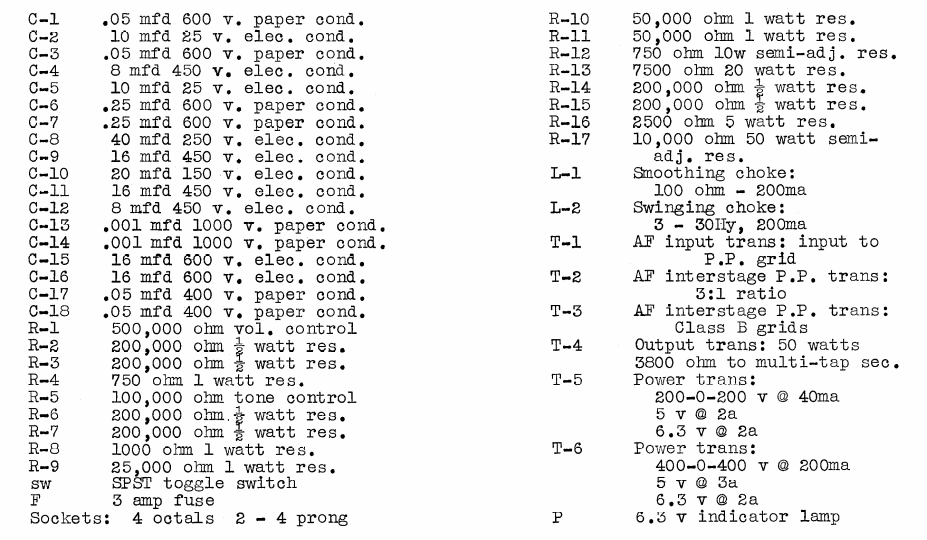

| Clique na imagem para ampliar |




| Clique na imagem para ampliar |
