6VDC Amplifier (T485E)

Details
Written by: Newton C. Braga

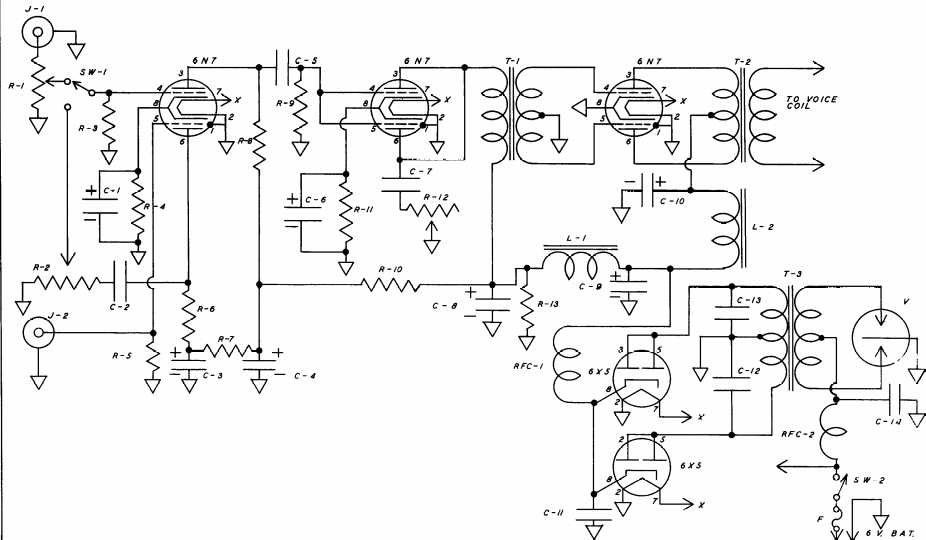

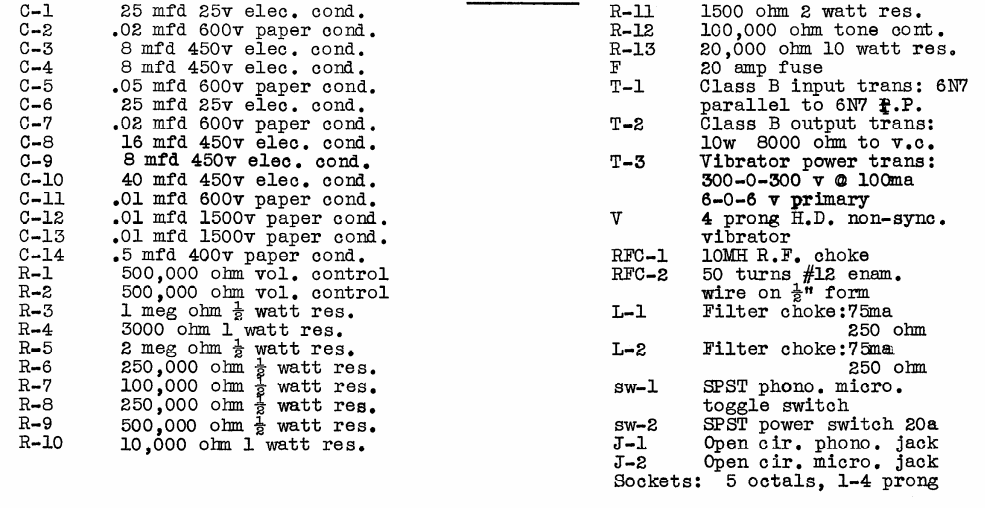

This drum amplifier was found in an American documentation from 1947. It makes use of a mechanical vibrator to generate high voltage for the tubes.
