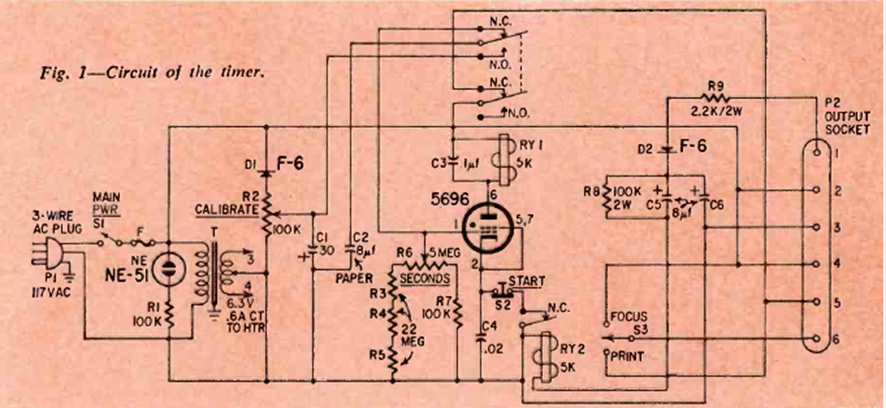

This circuit was published in Radio Electronics magazine in December 1965. The circuit uses a trigger tube of the time that would be the equivalent of the SCR. It is a Tiratron that directly feeds a high voltage relay.
| Clique na imagem para ampliar |
