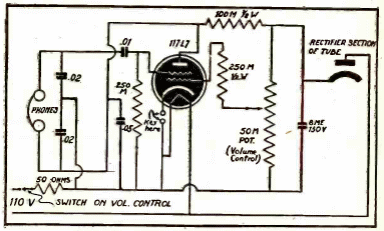

This is a Colpitts Oscillator for practicing code using a tube. The circuit is 1942 and the headphone must be high impedance with at least 2 k ohms. The phone coil is used in the circuit as an inductance for frequency determination.
Telegraph Oscillator (T1815E)
- Details
- Written by: Newton C. Braga
