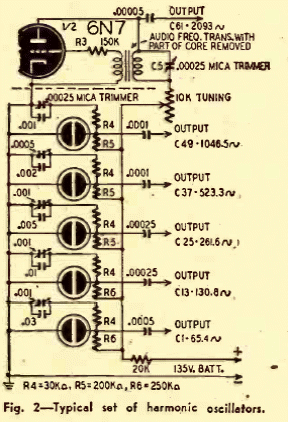

In the figure we have an oscillator stage to be used in the design of an electronic tube organ. The circuit is from a Radio Craft magazine, January 1947. It can be adapted to a modern circuit.
Organ Oscillator (T1122E)
- Details
- Written by: Newton C. Braga
