Tube Metal Finder (T733E)

Details
Written by: Newton C. Braga

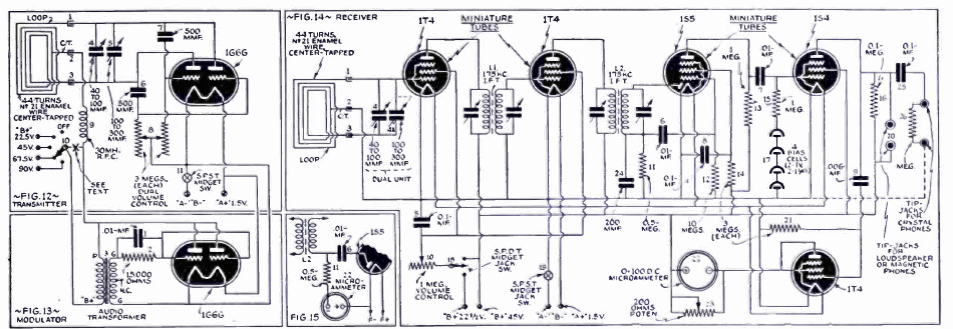

This circuit is from a Radio Craft from the 1940's. The circuit employs 5 tubes and must be battery powered. See that the circuit is quite critical, especially in relation to the sensor coil.
