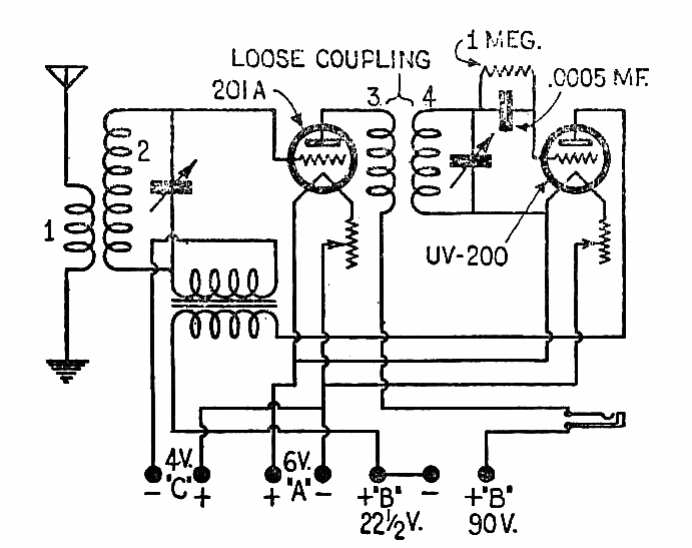

This receiver is from a 1924 Gernsback publication. The receiver has good efficiency when powered by the indicated voltages. Listening is through a high-impedance phone.
| Clique na imagem para ampliar |
Two Tube Receiver (T1560E)
