3-tube receiver (T1602E)

Details
Written by: Newton C. Braga

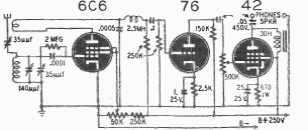

Found in a 1949 Radio Electronics, this circuit employs vacuum tubes of the time. Power supply not provided.
