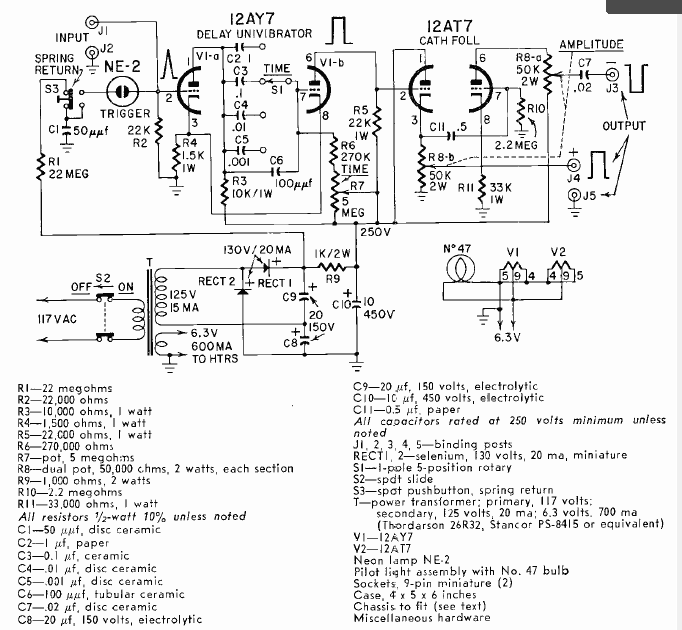

Single Pulse Generator (T1740E)

Details
Written by: Newton C. Braga



This benchtop equipment was found in Radio Electronics magazine from April 1960. The two double valve circuit is powered from mains power.
