Transmitter for beginners (T1513E)

Details
Written by: Newton C. Braga

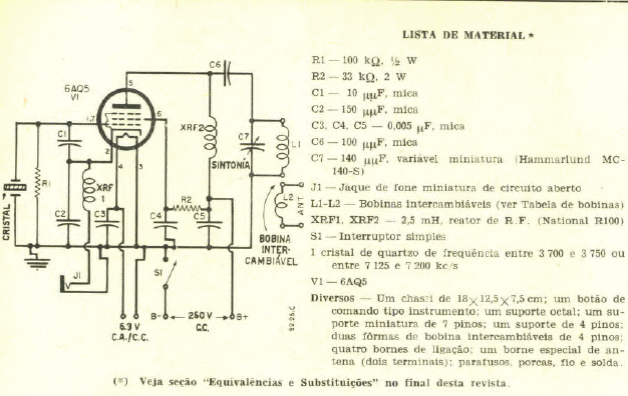

Under this name, we found in a Popular Electronics of August 1976 a transmitter for the 40 or 80-meter range of beginning radio amateurs. The circuit is crystal controlled and the power supply was not provided.
