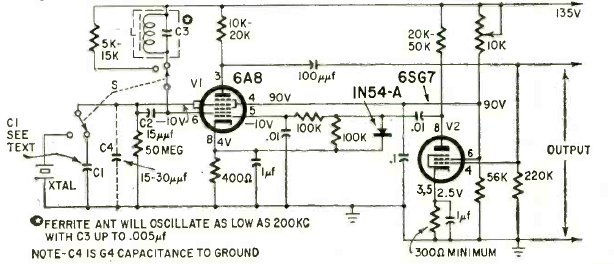

This low amplitude linear oscillator circuit was found in Radio Electronics magazine from July 1962. The frequency is given by the crystal and the source must have the voltage indicated in the diagram.
Linear Oscillator (T1777E)
- Details
- Written by: Newton C. Braga
