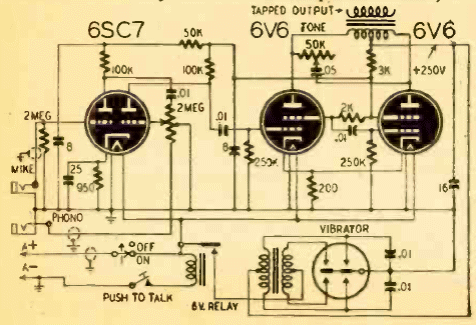

This circuit from a May 1947 Radio Craft is intended for automotive applications as it has the vibrator that converts the 12 V from the battery into high voltage for the circuit. 3 valves are used with a good output power.
Vibrator Amplifier (T1156E)
