Electronic counter (T1730E)

Details
Written by: Newton C. Braga

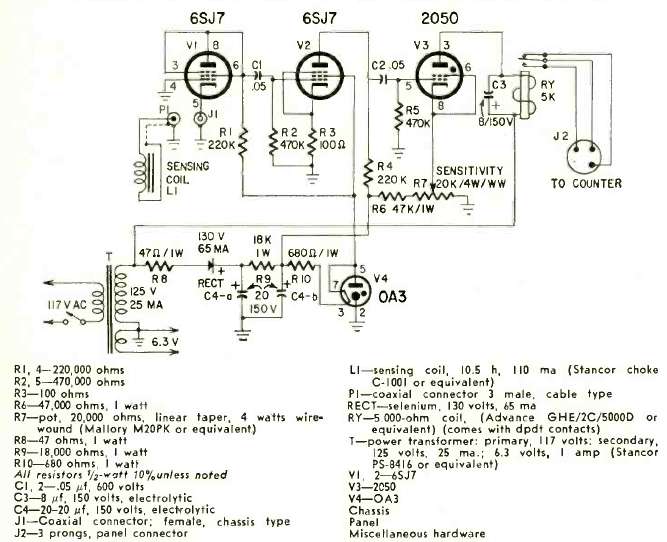

This 4-tube counter was found in Radio Electronics magazine from December 1959. The circuit uses a coil as a sensor to detect the passage of metallic parts or magnets.






| Clique na imagem para ampliar |
