Geloso Recorder G.268 (T252E)

Details
Written by: Newton C. Braga

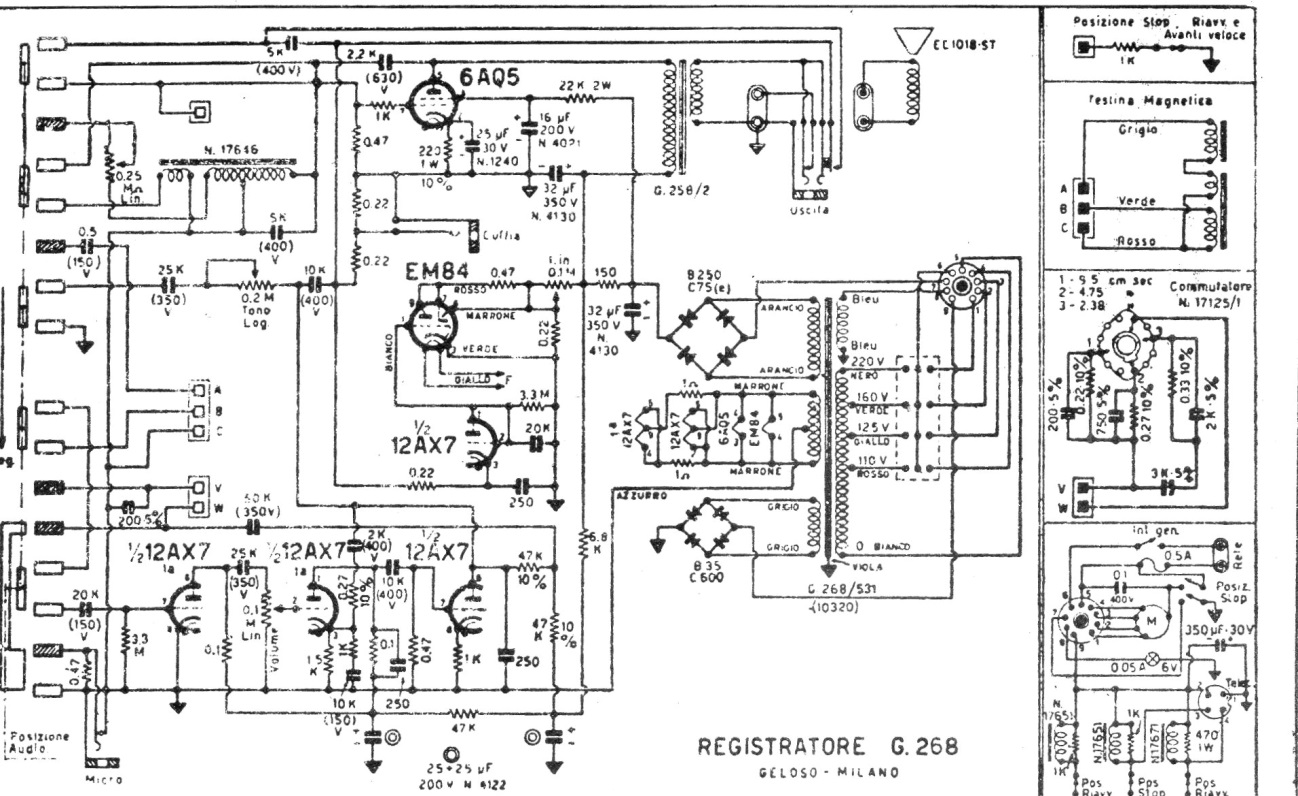

   This is a diagram of a 1970s reel or tape recorder. It is an Italian Geloso recorder, quite popular at the time. The circuit is a reference for equipment recovery.
