30 W Amplifier (T371E)

Details
Written by: Newton C. Braga

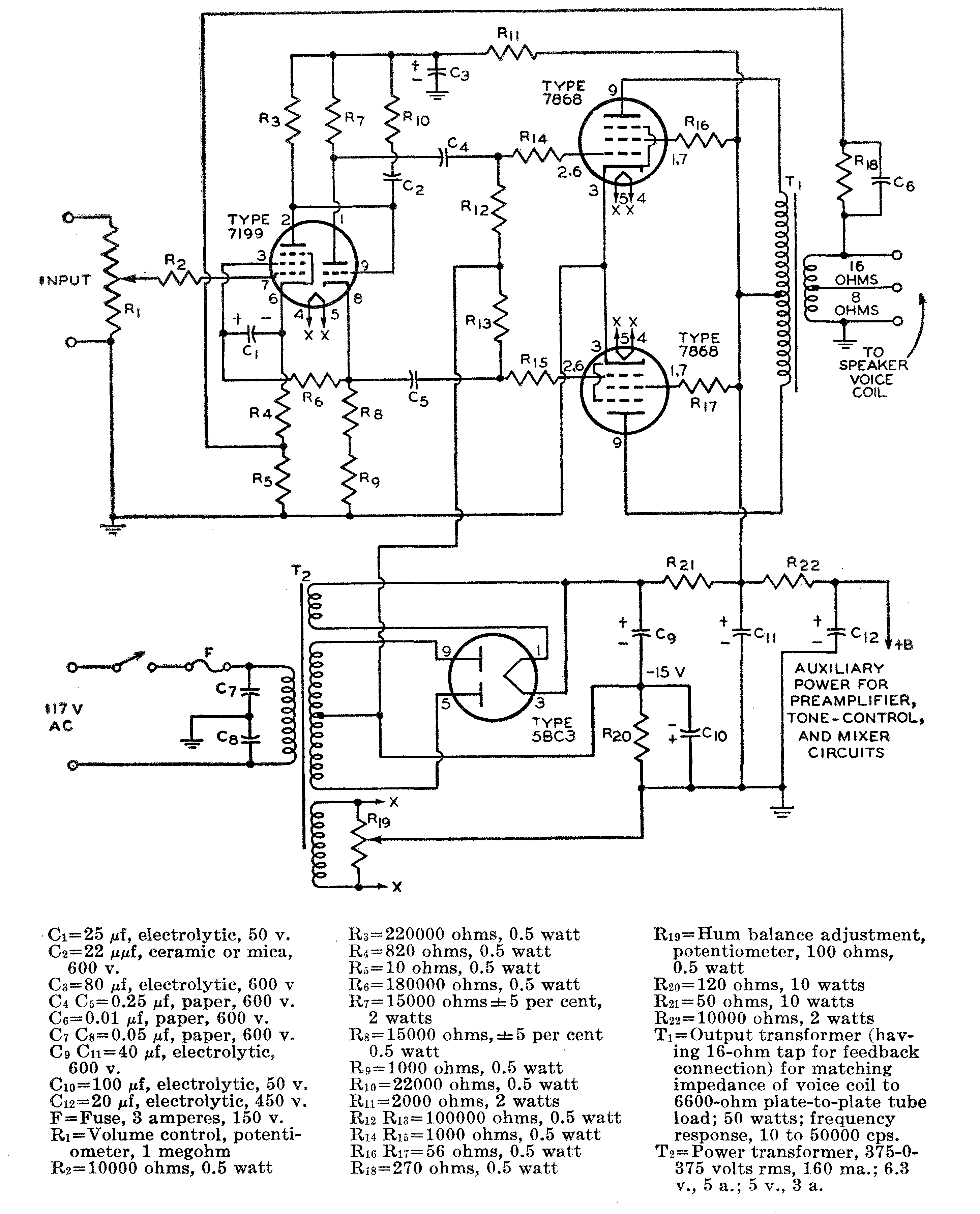

     Operating in class AB1, this high-fidelity amplifier was found in the 1961 RCA tube manual. The circuit has high input impedance and good gain.




| Haga click en la imagen para ampliar |
